API Testing Automation: Strategy, Tools, and KPIs That Actually Matter

APIs are everywhere, and in most cases, we don’t give them much thought, even when using them multiple times a day. Whenever you log into a website using your Google or Facebook account, check the location of a new restaurant on Google Maps right from the restaurant’s website, or pay for your purchase on an eCommerce site using your PayPal account, you get to witness APIs in action.

But while APIs usually serve a single purpose and are not particularly large or complex software products, it takes a lot of testing on the developers’ side to ensure the spotless performance, complete functionality, and strong security of an API. And many organizations now prefer to automate API testing to save time and money on QA and get more consistent results. In today’s guide, we are going to talk about why and how to use API automation testing in your company.

What Is API Testing & How Is It Different From Other Types of Testing?

API testing is the process of verifying the correct operation of an API (Application Programming Interface) by interacting directly with the application, bypassing the user interface. As more and more businesses rely on API technology to offer more robust functionality to their users and surpass the competition, API testing becomes a mainstay of any current software development and QA project.

API testing is also an important part of the switch from the monolith architecture to microservices. A growing number of companies prefer to build flexible and scalable solutions consisting of multiple smaller units such as APIs instead of large, monolithic systems. On the one hand, this leads to the development of handy software solutions with a specific purpose. On the other hand, it creates the need to test each unit or API separately and in combination with other units.

Words by

Taras Oleksyn, Head of AQA, TestFort

“One of the biggest differences between API testing and other levels and types of testing is the approach to testing itself. Instead of simulating the behavior of an end user, like you do with UI testing, in API testing, you make sure that the product is working properly regardless of the user’s behavior. Plus, API testing costs less and is easier to perform than many other types of quality assurance.”

What Are The Key Benefits of API Test Automation?

As with many other types and levels of software testing, it’s possible to do API testing entirely manually. However, automating the process brings some sizable benefits to the whole software development and QA operation. Here are a few reasons why API testing is important and deserves your utmost attention:

• Automating API testing allows you to catch bugs earlier, before they do more damage to the entire product or stall the development process.
• Automated API testing provides nearly endless test case reusability opportunities, resulting in more efficient testing and API products being developed faster.
• API test automation eliminates the risk of human error skewing the results of testing, misinterpreting the results, or skipping some essential steps in the testing process.
• While automating API tests requires financial investment in the initial stages, test case reusability allows the organization to save money on testing in the long run.
• API testing automation improves the performance, security, and scalability of a software solution that uses API technology more noticeably than manual testing.

The Role of API Testing Automation in API-First Development

A relatively new trend among software development companies and businesses developing their own software is the API-first approach. Under this approach, development teams build software applications by linking together several different APIs. This is a product-centric framework that puts emphasis on the functionality brought by external services through APIs. And with teams often racing against the clock to unveil better products faster than their competitors, continuous and effective API testing, especially API testing automation, can significantly improve the QA process and lead to higher quality software that is released according to schedule.

How API Test Automation Helps with Shift-Left Testing

API test automation helps teams shift left by enabling earlier and more frequent testing during the software development lifecycle. Traditionally, testing is done after development is complete, but with automation, tests can be integrated early into the process, right alongside code development.

Automated API tests can run continuously as code is written, providing immediate feedback to developers. This early detection of defects allows teams to identify and fix issues before they become complex and costly to resolve. Automation supports Continuous Integration (CI) pipelines, allowing tests to run every time new code is committed, ensuring that any breaking changes are caught early.

Additionally, API automation reduces the manual testing effort, freeing testers to focus on more complex tasks or exploratory testing. It also promotes collaboration between developers and testers, as both can work together to create and maintain automated tests.

In short, API test automation streamlines testing processes, speeds up feedback, and helps teams deliver more stable, high-quality software while reducing overall development time and costs.

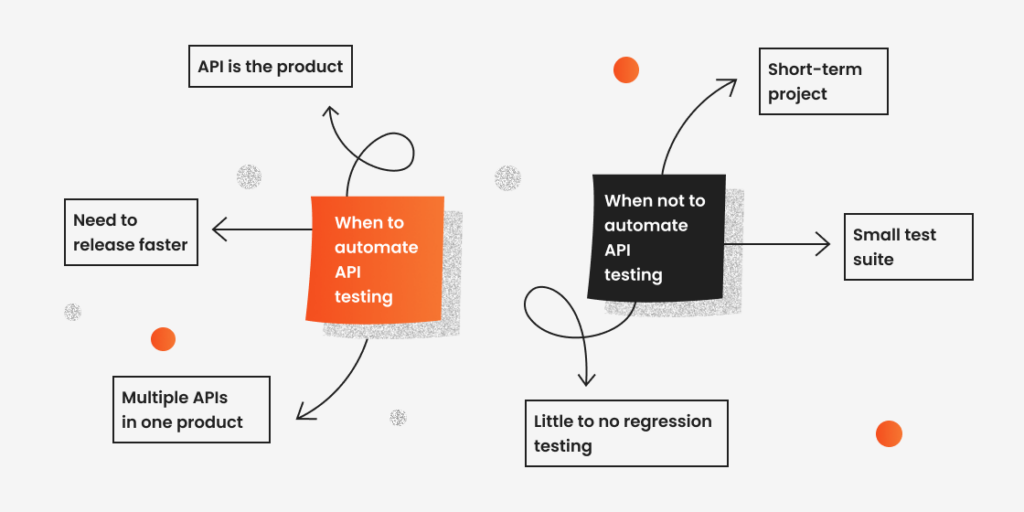

Is It Always a Good Idea to Automate API Testing?

The benefits of API automation testing seem far too vast for anyone to doubt the usefulness of this QA technique. But does it always make sense to automate API testing within an organization?

From a practical standpoint, automation is typically not needed on small testing projects that are not expected to be long-term. Automation API testing may also be redundant when there isn’t a substantial regression test suite to take care of, as automation techniques work perfectly with regression testing.

The situation where automating API testing makes perfect sense and is definitely needed is when the API is the product that is being developed, as opposed to being just another component of a bigger product. With the reputation of the company riding on the quality of the API, rigorous testing, including automated QA, is a must.

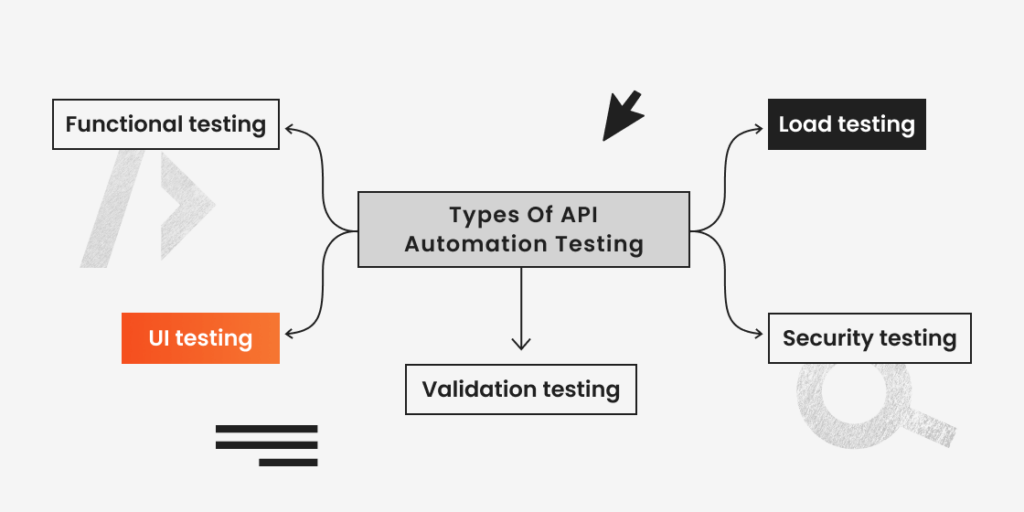

Types of API Automation Testing

The goal of API testing automation is to test the API at every level and to make sure it’s prepared to be used by its end customers. This is why it’s possible to break down the overall process of API automation testing into specific types of tests that are designed to check different areas of the product. These are the most commonly used types of API automated testing.

1. Functional Testing

As one of the most vital types of API testing, functional testing is responsible for verifying the correct operation of the API’s principal functions. In other words, this type of testing is performed to make sure that the API is doing everything it was originally intended to do.

2. UI Testing

While UI testing does not directly deal with testing the API itself, it performs another important function in the API testing process by investigating all the ways the API is tied into the user interface of the application and vice versa.

3. Validation Testing

Validation testing typically happens at the last stages of the API development process. It is meant to verify various aspects of the product, including correct operation and presence of all design elements. A successfully passed validation test means the product is ready for release.

4. Load Testing

Since APIs are often designed to work with large amounts of data and under different circumstances, load testing is vital for making sure that the API can handle both normal and peak numbers of requests.

5. Security Testing

Often dealing with sensitive company or customer data, APIs can undoubtedly benefit from security testing. This can also include penetration testing as a subset of security testing, while automation can further streamline the process and make it more efficient.

Who Can Do API Automation Testing? What Skills and Competencies Are Required?

The common opinion in the testing community is that API testing automation is not the most complex type or level of testing. This is why this process does not strictly require a senior automation QA or a lead to be involved.

Words by

Taras Oleksyn, Head of AQA, TestFort

“You don’t always need a senior-level automation tester to perform API automation testing. Even when you don’t have any automation QAs on a project, the job can be successfully done by manual QAs or software developers. It’s all about the context and the available resources. If you can afford the time and money it takes to train your manual QAs or developers to automate API testing, then you can get away with having no automation QAs on a project.”

Still, a certain set of skills can make the adoption of API automation testing practices easier and the project results more predictable and dependable. Here are the skills and competencies an engineer needs for automating API testing:

• Strong manual testing knowledge, which enables the engineer to approach testing with maximum precision and add value through manual testing where automation is not applicable.
• Knowledge of programming languages, or at least one, which can be useful both for understanding the inner workings of the product being tested and for creating custom frameworks and test scripts.
• Ability to understand business requirements as well as technical ones — in other words, the API automation testing engineer should be able to see beyond the failed or passed tests and actually know how their efforts impact the business side of the product.
• Familiarity with automation tools — not necessarily a lot of them, but with at least one or two popular tools nonetheless. Selenium, Postman, and JMeter are a good place to start.
• Awareness of different development models, which can influence the way the team approaches API testing automation, how much time they have for each step, how often the stakeholders will expect reports, and so on.

Common Test Cases for API Testing Automation

When automating testing of an API solution, there are many things to take into consideration: the functionality, UI, performance, security, and stability of the application depend on how well it’s tested. The exact selection of test cases depends on the project goals and software specifics, but this list is a good starting point:

• Verify API response status codes (e.g., 200, 404, 500).
• Validate correct data in the response body.
• Test response structure and schema validation (JSON, XML).
• Test CRUD operations (Create, Read, Update, Delete).
• Ensure unauthorized requests return appropriate errors (401, 403).
• Check invalid data formats and missing required fields.
• Test how the API handles incorrect HTTP methods.
• Measure response time and performance.
• Simulate load testing with multiple users.
• Test security against SQL injection and XSS vulnerabilities.
• Validate data integrity and consistency across endpoints.
• Test pagination, sorting, and filtering functionality.
• Ensure proper enforcement of rate limiting and throttling.
• Verify file upload and download capabilities.
• Test session/token expiration and proper handling of expired credentials.

How to Choose an API Testing Tools + 5 Popular Tools for API Automated Testing

A test automation framework and set of tools can influence the outcome of the project more than some realize. These days, there is no shortage of tools and frameworks for automating API testing: there is a perfect solution for every project, development model, team size, and budget. Plus, new tools appear every year and never fail to attract the attention of QA engineers. Here are the top five tools to help you automate API testing.

Knowing the most popular tools for API testing automation is a great way to round up some options for your upcoming project. However, automating API testing using the most popular tools isn’t always the most practical decision, as the specifics and needs of the project can be too unique for that. Here are a few practical tips for choosing the right tool for automation API testing:

1. Identify project requirements. Determine the key requirements, such as the type of APIs (REST, SOAP, GraphQL), supported data formats (JSON, XML), and test cases (functional, performance, security).
2. Evaluate team skills. Assess the team’s expertise in specific programming languages or tools. Choose a tool that aligns with their skill set to avoid steep learning curves.
3. Check for integration with CI/CD pipelines. Ensure the tool integrates seamlessly with your CI/CD pipeline to support continuous testing and automation workflows.
4. Consider ease of use. Prioritize tools that offer a user-friendly interface, detailed documentation, and simple setup to streamline the automation process.
5. Look for comprehensive reporting. Choose a tool that provides clear and detailed reporting with test result logs, error tracking, and performance metrics for easy analysis.
6. Support for data-driven testing. Verify that the tool allows running tests with various input data sets, which is essential for covering different scenarios and edge cases.
7. Ensure support for mocking. Select a tool that offers mocking or stubbing capabilities, enabling you to simulate API dependencies or third-party services during testing.
8. Check for scalability. Ensure the tool can scale with the project’s needs, including the ability to handle a growing number of tests, endpoints, and users over time.
9. Evaluate cross-platform and environment support. The tool should work across different environments (local, cloud) and support various platforms (Windows, Linux, macOS).
10. Review cost and licensing. Consider your project budget and evaluate free, open-source tools versus paid solutions based on the tool’s features and long-term benefits.
11. Analyze community support and updates. Choose a tool with active community support, regular updates, and responsive customer service for resolving issues quickly.
12. Start with a trial. Run a pilot project or trial version of the tool to ensure it meets your project’s needs, supports your testing goals, and integrates with your existing workflows.

Here are the 5 tools you should consider in the first place for your API automation testing project.

Tool	Best for	Language	Key strengths
Postman	Teams that want a visual tool with easy CI/CD runs	JavaScript (test scripts)	Shared collections, environment variables, CI runs through the Newman CLI
REST Assured	Java teams automating REST APIs in code	Java	Readable syntax for requests and assertions, works with JUnit and TestNG
Karate	Teams that want BDD-style API tests with little coding	Gherkin-like syntax	Built-in mocks, data-driven tests, performance testing through Gatling
SoapUI / ReadyAPI	Projects with both SOAP and REST services	Groovy (scripting)	Strong SOAP support, service virtualization and security scans in ReadyAPI
Katalon Studio	Teams that want low-code automation across API, web, and mobile	Groovy (optional scripting)	Record-and-script modes, REST, SOAP, and GraphQL support, built-in reporting

Metrics and KPIs to Use in API Automated Testing

There are many ways to measure the efficiency of automation testing and its effect on the overall state of the application. However, few are as effective as metrics and KPIs. Here are the ones that are best suited for automated testing of APIs.

1. Test Coverage — measures the percentage of API endpoints, methods, or business scenarios covered by automated tests. High coverage indicates that most of the functionality is tested, reducing the risk of defects.
2. Pass/Fail Rate — tracks the number of tests that pass versus those that fail in each test cycle. A low pass rate may indicate issues with the API or the tests themselves.
3. Defect Detection Rate — measures the number of defects found during testing compared to those found after release. High detection in early stages reflects effective testing.
4. Test Execution Time — tracks how long it takes for the test suite to run. Optimizing execution time is crucial in continuous integration environments.
5. Automation Coverage — measures the percentage of API test cases that are automated versus manual. Higher automation coverage implies better efficiency and faster feedback loops.
6. Mean Time to Detection (MTTD) — tracks the average time taken to detect defects after code is committed. Lower MTTD means faster issue identification.
7. Mean Time to Resolution (MTTR) — measures the average time taken to resolve defects found through testing. Short MTTR shows efficiency in addressing issues.

How to Automate API Testing : 9 Steps

Automating API testing takes nine steps, from turning the API contract into a prioritized test plan to running the suite in CI/CD and keeping it current. The steps follow the order teams usually build in: stable foundations first, broader coverage next, and finally the pipeline that runs everything on every commit. These are different enough from regular API testing to warrant additional training and time spent on strategy creation.

Step 1. Start from the API contract and prioritize endpoints

API test automation starts with the contract: the OpenAPI specification, WSDL, or GraphQL schema. Test design begins as soon as the contract exists, often before the endpoints are fully built, which catches specification gaps early. Endpoints then get ranked by business impact, logic complexity, usage volume, and defect history. Authentication, payments, and core data operations usually come first.

Step 2. Choose the framework and tools

The framework follows the team’s language and the API type. Typical choices:

• REST Assured for Java teams
• pytest with requests for Python teams
• Postman with Newman for teams that prefer a visual tool
• Karate for BDD-style tests
• SoapUI for SOAP services

The deciding factors are CI/CD integration, data-driven testing support, mocking, and reporting. The tool selection tips above cover each.

Step 3. Set up environments, authentication, and test data

The suite needs a separate configuration for each environment, so the same tests run against development, staging, and pre-production without edits. Authentication is scripted once and reused: a fixture or helper fetches a valid token for each user role before the tests run. Dynamic values such as timestamps, tokens, and generated IDs are captured at runtime instead of hardcoded. The suite lives in version control from the first commit, alongside the API code.

Step 4. Mock external dependencies

APIs rarely work alone, and third-party services make automated tests slow, flaky, or expensive to run. Mocks or stubs replace payment gateways, identity providers, and partner APIs during most test runs, using tools such as WireMock or the built-in mocking features of the chosen framework. Mocks also make failure scenarios testable on demand: a partner timing out, returning a 500, or sending malformed data.

Step 5. Write the core functional tests

Core tests cover what every endpoint must get right:

• Correct status codes
• Response bodies that match the schema
• CRUD operations
• Proper 401 and 403 errors for unauthorized requests
• Clear errors for missing fields, invalid formats, and unsupported HTTP methods

When endpoints depend on a specific call order, tests chain requests explicitly and clean up the data they create, so each test runs independently.

Step 6. Make tests data-driven

Data-driven testing runs the same test logic against many input sets, which is the fastest way to expand coverage without rewriting scripts. Test data sits in separate files or parameter lists. It covers valid inputs alongside boundary values, invalid types, empty fields, and oversized payloads. Pagination, sorting, and filtering parameters get the same treatment.

Step 7. Add contract and non-functional checks

Once functional coverage is stable, the suite expands in three directions:

• Contract tests, for example with Pact, catch breaking changes between services before deployment.
• Performance and load tests with JMeter, Gatling, or k6 measure response times and throughput under traffic.
• Security checks cover injection attempts, expired and tampered tokens, rate limiting, and access to other users’ data.

Penetration testing adds depth for high-risk APIs.

Step 8. Run the suite in CI/CD

The suite runs automatically on every push. Fast smoke and contract tests run on each commit, the full functional and regression suite runs on each pull request, and performance tests run nightly or before releases. Parallel execution keeps run times short as the suite grows. Every merge gets regression coverage without anyone starting a run by hand.

Step 9. Monitor results and maintain the suite

Automated reports and dashboards show pass/fail trends, execution time, and recurring failures, and the KPIs above measure whether the suite still catches defects early. Tests get updated whenever the API contract changes, and outdated tests are removed. Developers contribute unit tests for individual methods, while testers own integration and system-level coverage, so the suite grows with the API instead of falling behind it.

Key Challenges of API Automation Testing

Even when it seems like everything was done right in preparation for automating API testing, there are still a few issues to be aware of as a QA engineer or project stakeholder. They won’t necessarily occur on every project, but being prepared for possible challenges is half the battle. These are the challenges that API testing automation teams encounter most frequently.

1. Choice of Framework and Tools

It’s not always easy to pick the right framework and tools for an API automation testing project, especially if the team is doing it for the first time. Organizations are often inclined to use open-source tools, which may not meet all of the project needs, and it goes without saying that it takes an experienced automation engineer, preferably a lead, to choose or design the perfect framework.

2. Lack of Employee Buy-In

The employees within an organization can be reluctant to start an API automation testing project for different reasons. The management team can be worried about the project cost and the need to hire new employees specifically for the project. The QA team, in turn, can be concerned about the complexity of the project and whether they have the skills required to launch the project successfully.

3. Proper Call Sequencing

APIs often depend on a specific order of calls to function properly, which is not always easily attainable in the process of testing automation. And if calls are not made in the right order, the team may end up with far more failed tests than they intended. This is an especially frequent problem with multi-threaded APIs, where the call order can get even more complicated.

4. Endless Range of Integrations and Combinations

There aren’t many software products out there that use just one API. And any new API or software unit can disrupt the performance of the API being tested. The more APIs the product uses, the more possible integration combinations there can be. The sheer number of those combinations can become an additional challenge for a QA team with limited resources.

5. Resource and Budget Concerns

While API testing automation is not as resource-intensive as some other types and levels of testing, it can nonetheless be rather expensive to set up an automation testing operation from scratch. One of the solutions for this challenge can be using outside help — for example, outsourcing part of your testing needs to a reliable QA partner.

Final Thoughts

For organizations developing APIs or actively incorporating APIs into their software solutions, automating API testing is not just one of the options to consider — it’s how they can ensure that their product is ready to be released and will not disappoint the customers with its performance, security, or functionality. We hope the tips and insights above will help you successfully plan and launch an API testing automation project.
